SPECIFICATIONS
Auto power off: Yes
Battery: AAA battery X 2
Battery Included: No
Brand Name: ANENG
Certification: CE
Choice: yes
Data retention: Yes
Display Type: DIGITAL

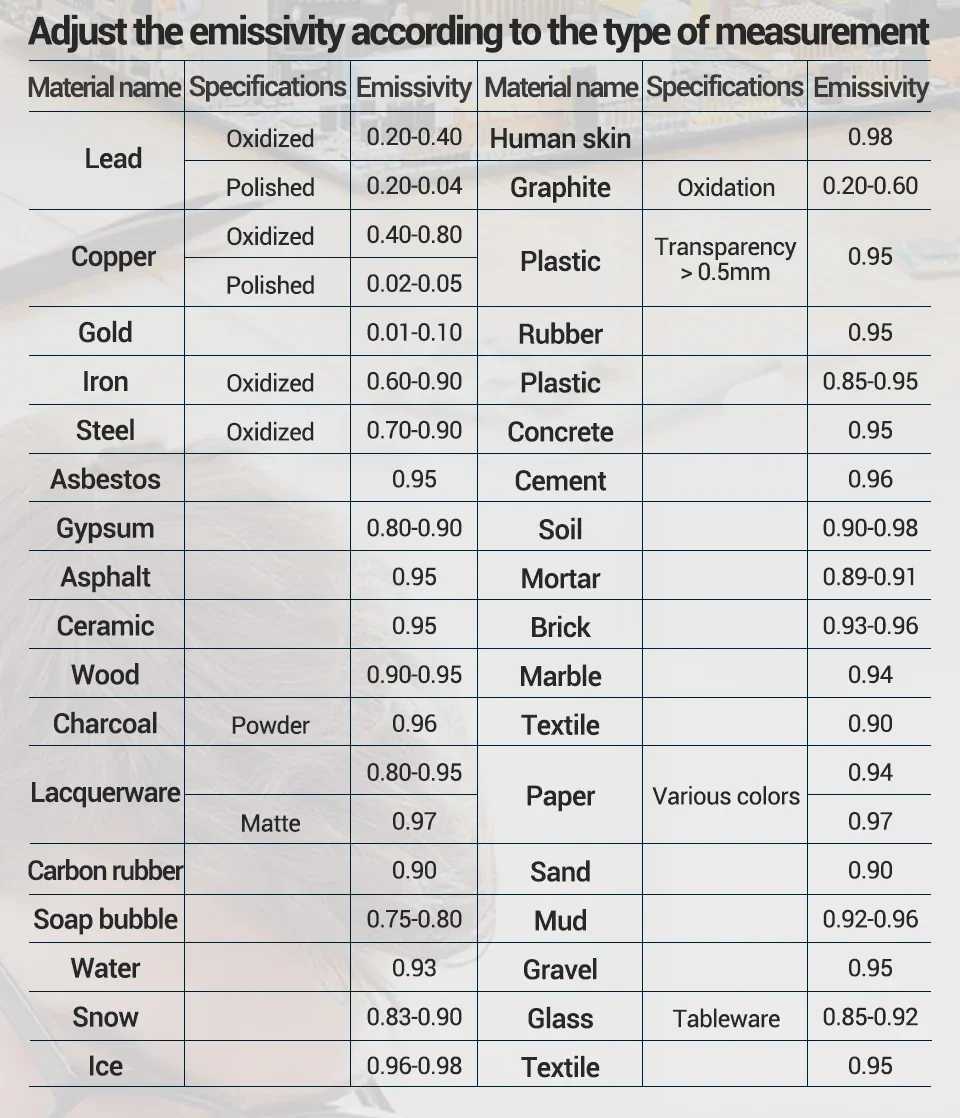

Emissivity: The default 0.95 is adjustable
High low temperature warning: Yes
High-concerned chemical: None
Is Smart Device: No
Laser positioning: Yes
Low power prompt: Yes
Material: ABS
Max Measuring Temperature: 120°C & Above
Maximum temperature minimum temperature: Yes
Maximum value: Yes

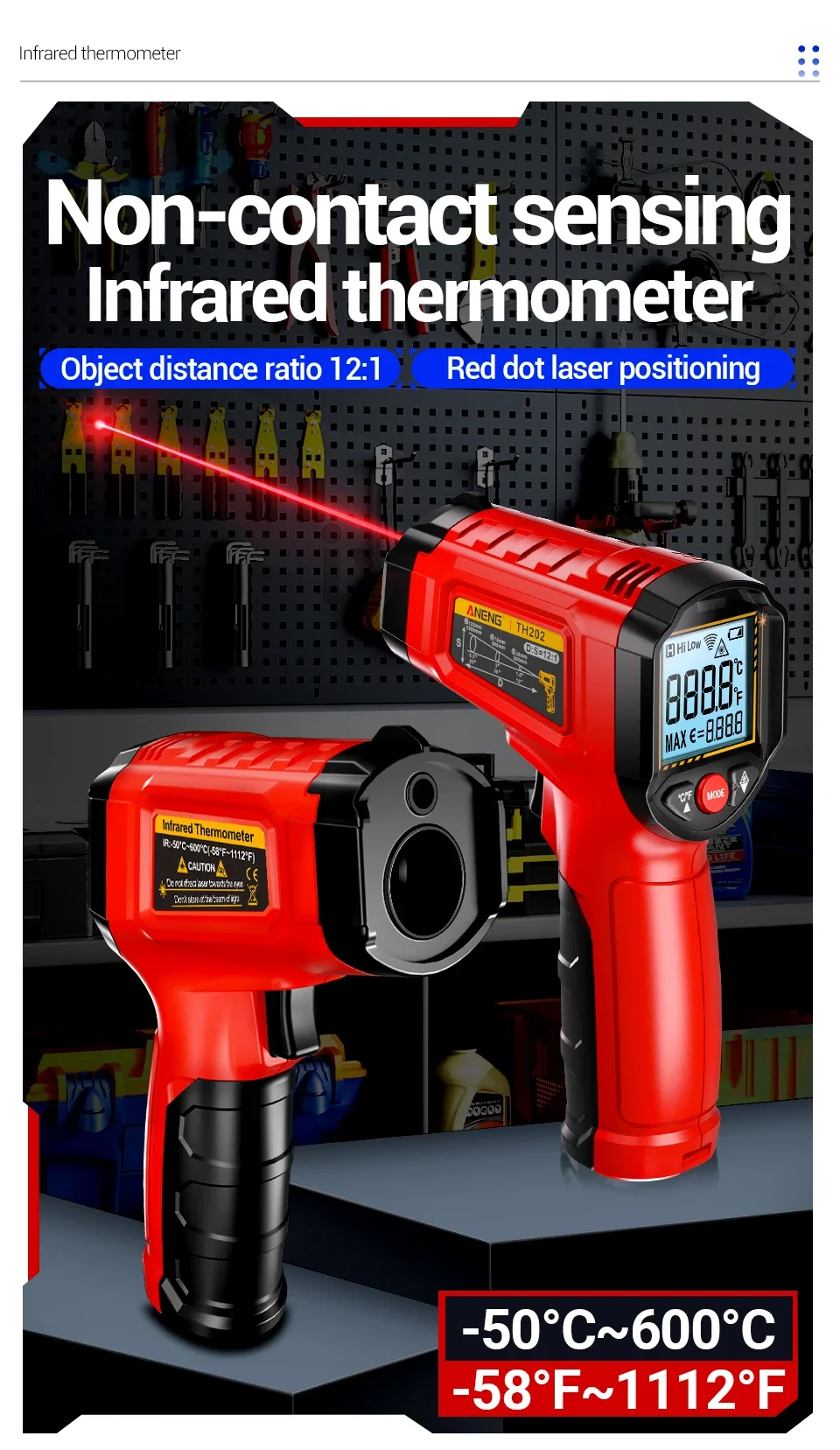

Measuring range°C: -50℃-600℃
Measuring range°F: -58°F-1112°F

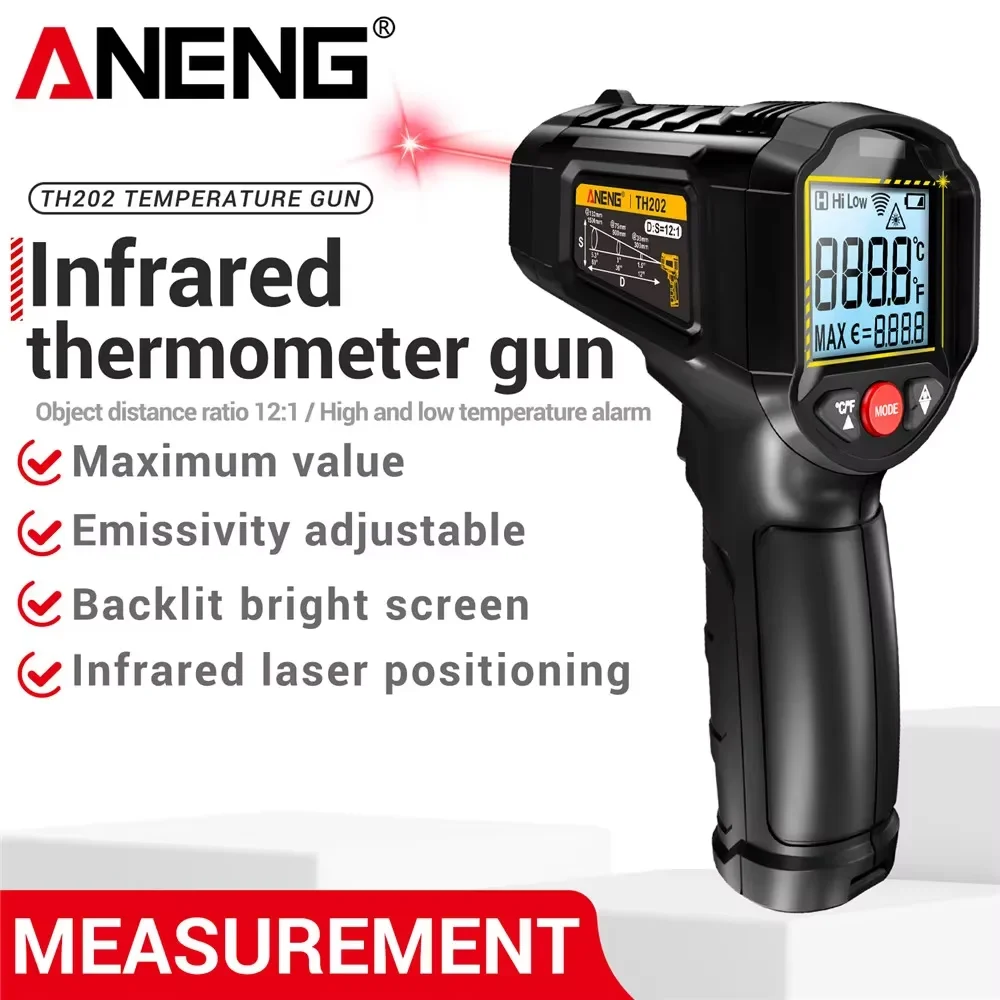

Model Number: ANENG TH202 Infrared Thermometer

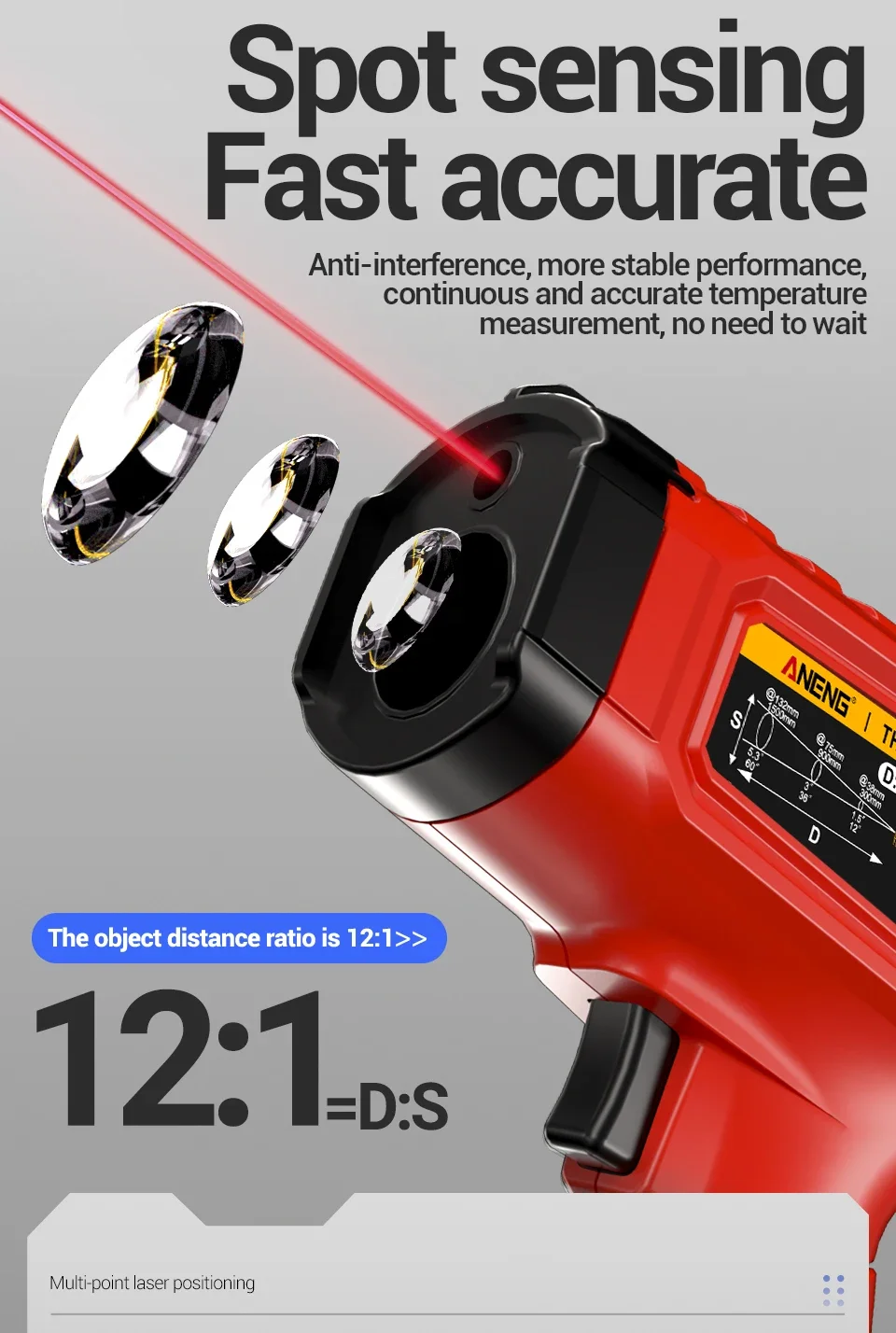

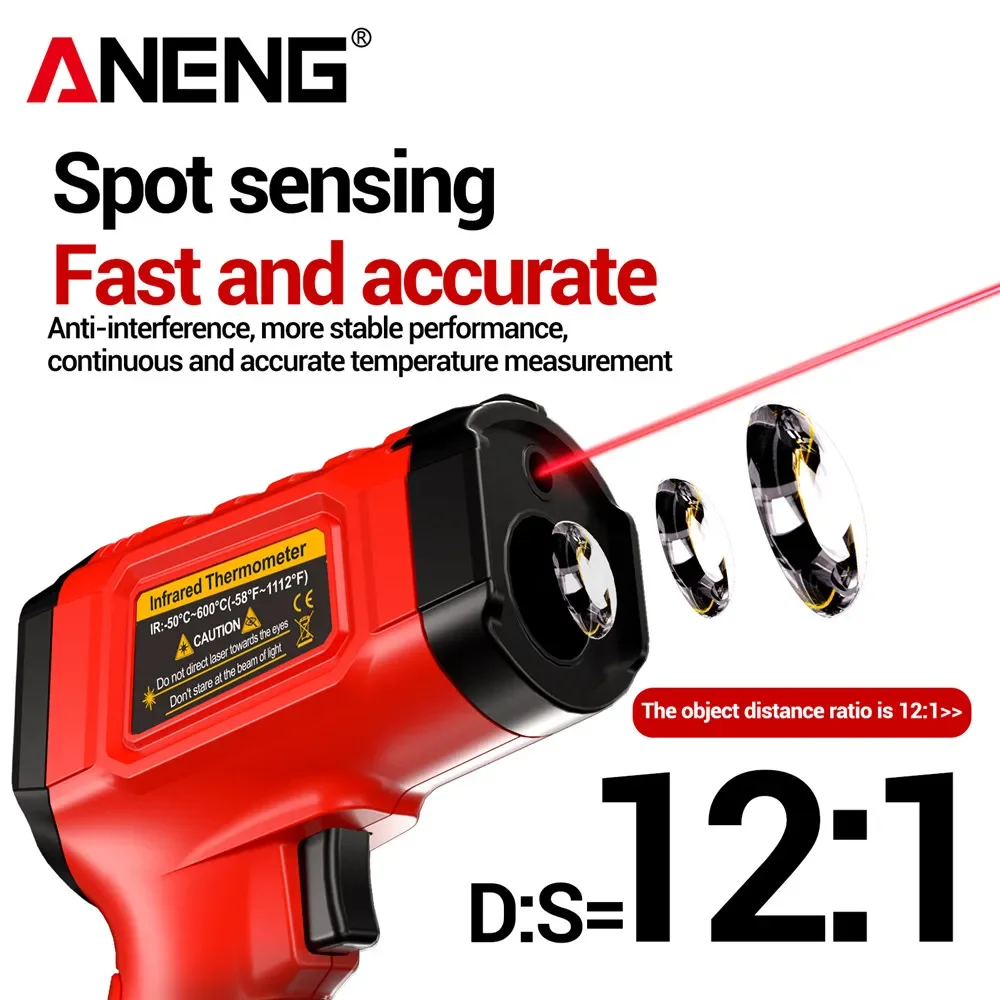

Object distance ratio: D:S=12:1
Origin: Mainland China
Power Type: Aaa Battery

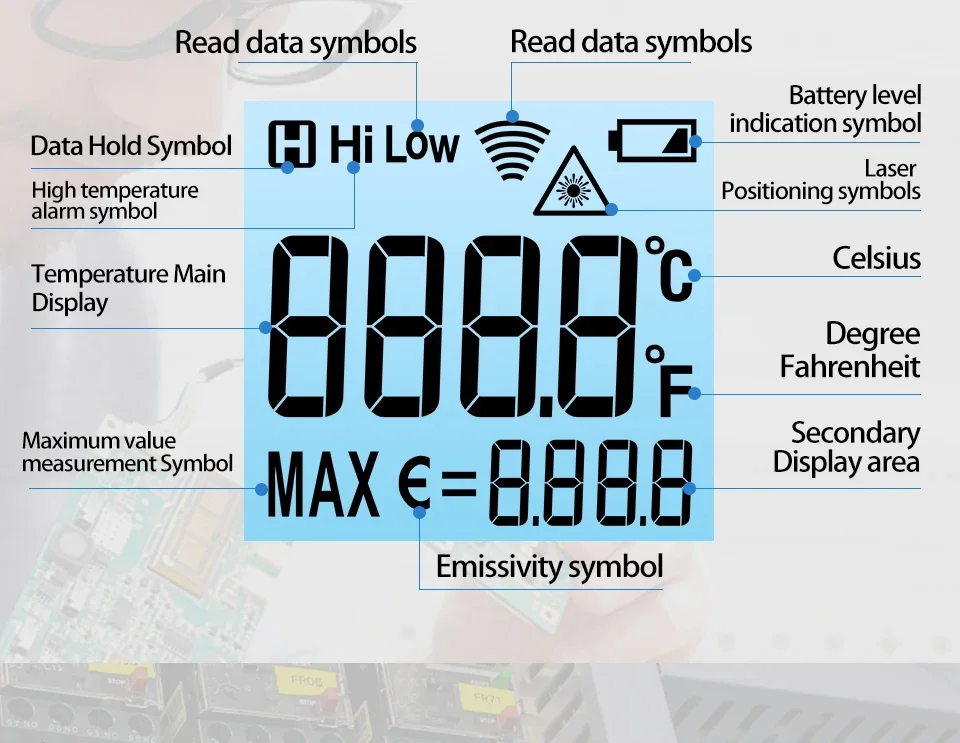

Screen: LCD backlit display
Style: Handheld
Theory: Infrared Thermometer

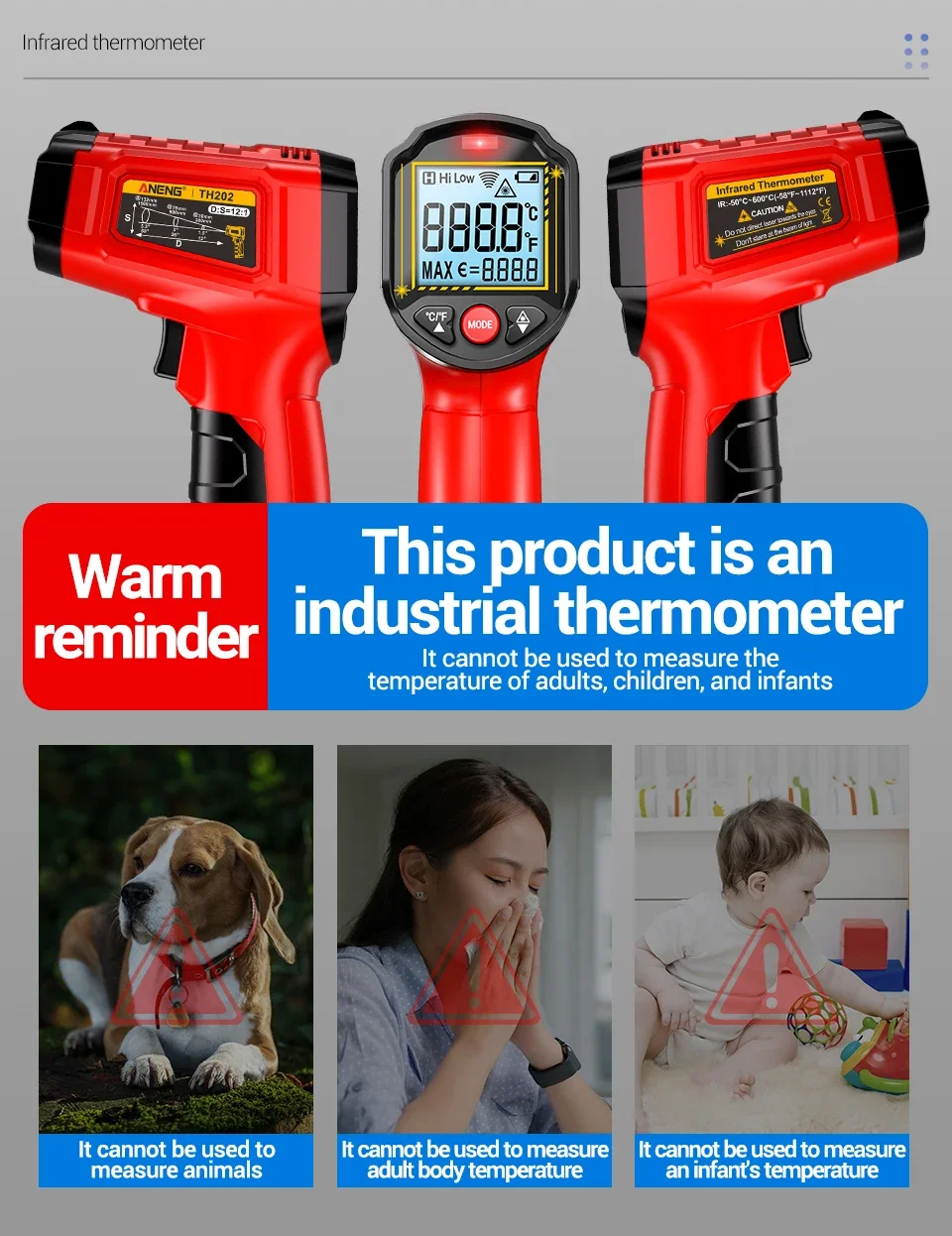

Use: Industrial
Weight: 105g
semi_Choice: yes
°C/°F adjustable: Yes

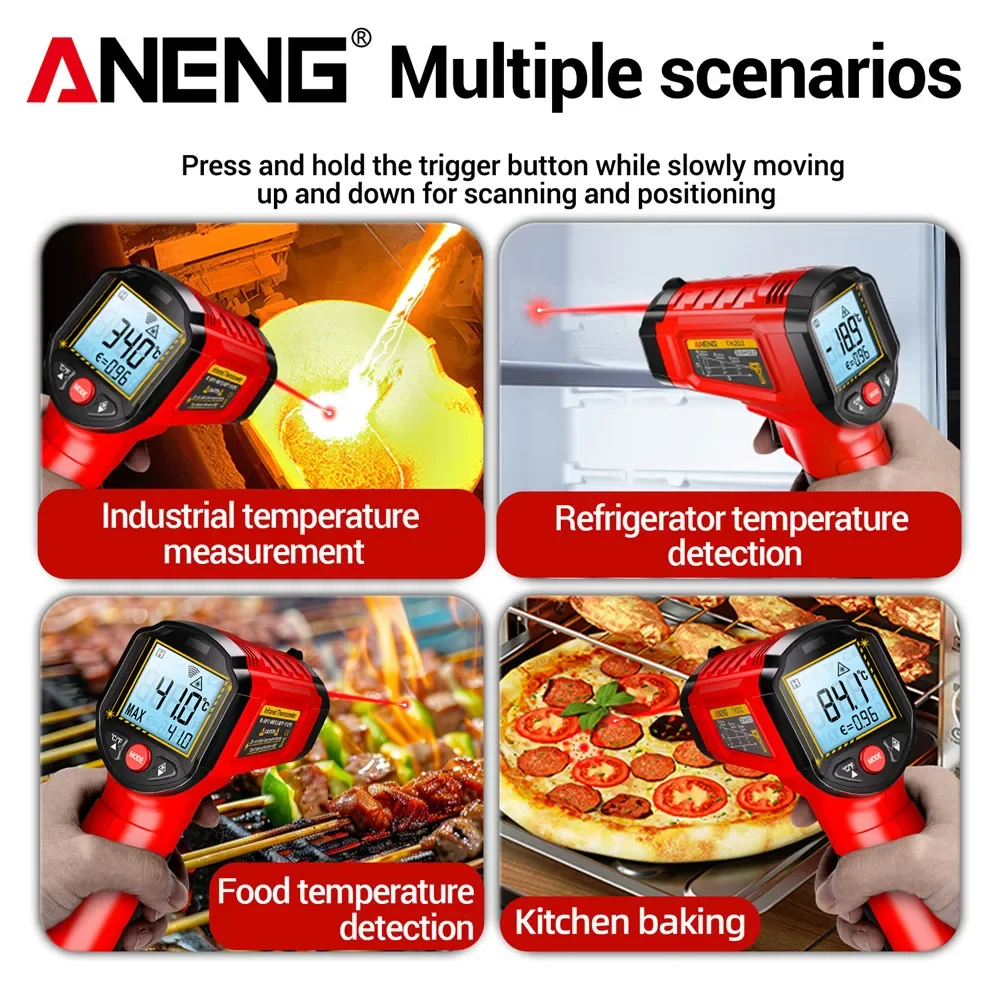

This series of infrared thermometers can measure the surface temperature of opaque objects. The optical components of the measuring instrument can sense the reflected and transmitted energy emitted by objects, and collect the energy onto the detector, making it suitable for quickly measuring the surface temperature of various high-temperature, toxic, or difficult to contact objects.

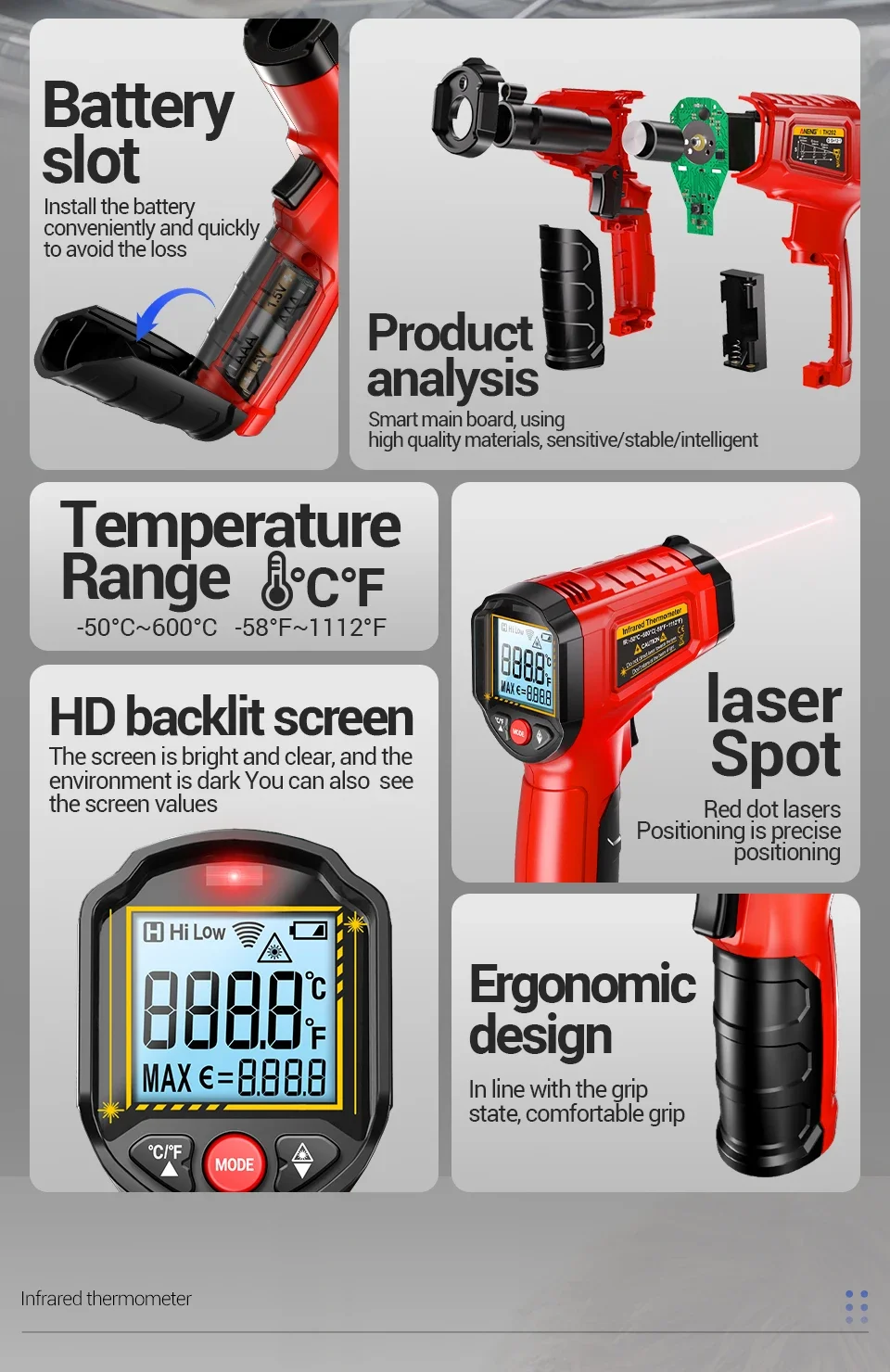

The thermometer consists of an optical system, photoelectric sensor, signal amplifier, signal processing circuit, and LCD display. The optical system gathers the infrared energy radiated from the surface of an object to a photoelectric sensor, which converts the energy into corresponding electrical signals. The signals are then converted into readings and displayed on an LCD through a signal amplifier and signal processor circuit.

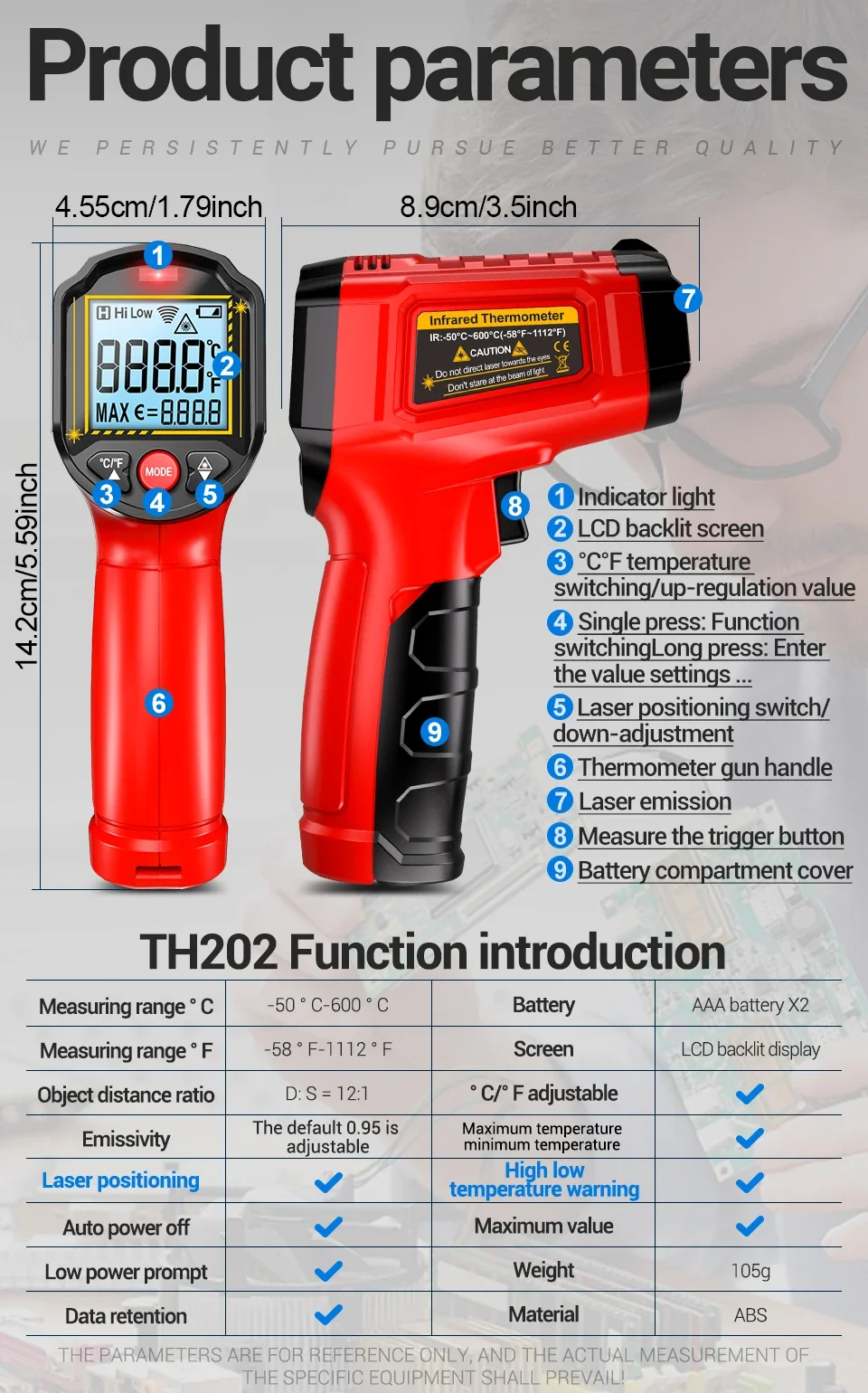

Specifications:
|
Measuring range°C |
-50°C-600°C |
Battery |
AAA battery X 2 (without shipment) |
|
Measuring range°F |
-58°F-1112°F |
Screen |
LCD backlit display |
|
Object distance ratio |
D:S =12:1 |
°C/°F adjustable |
√ |
|
Emissivity |
The default 0.95 is adjustable |
Maximum temperature minimum temperature |
√ |
|
Laser positioning |
√ |

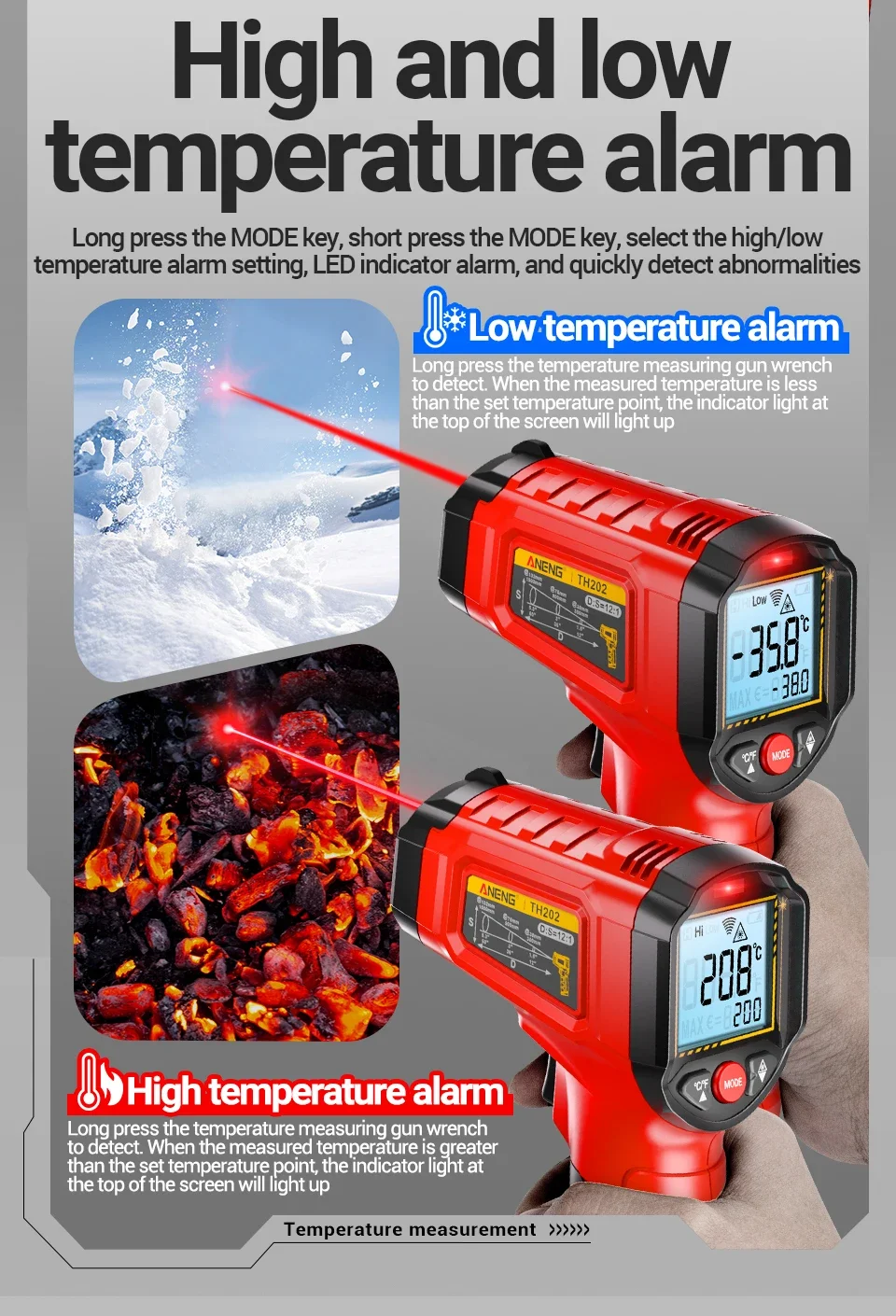

High low temperature warning |
√ |
|

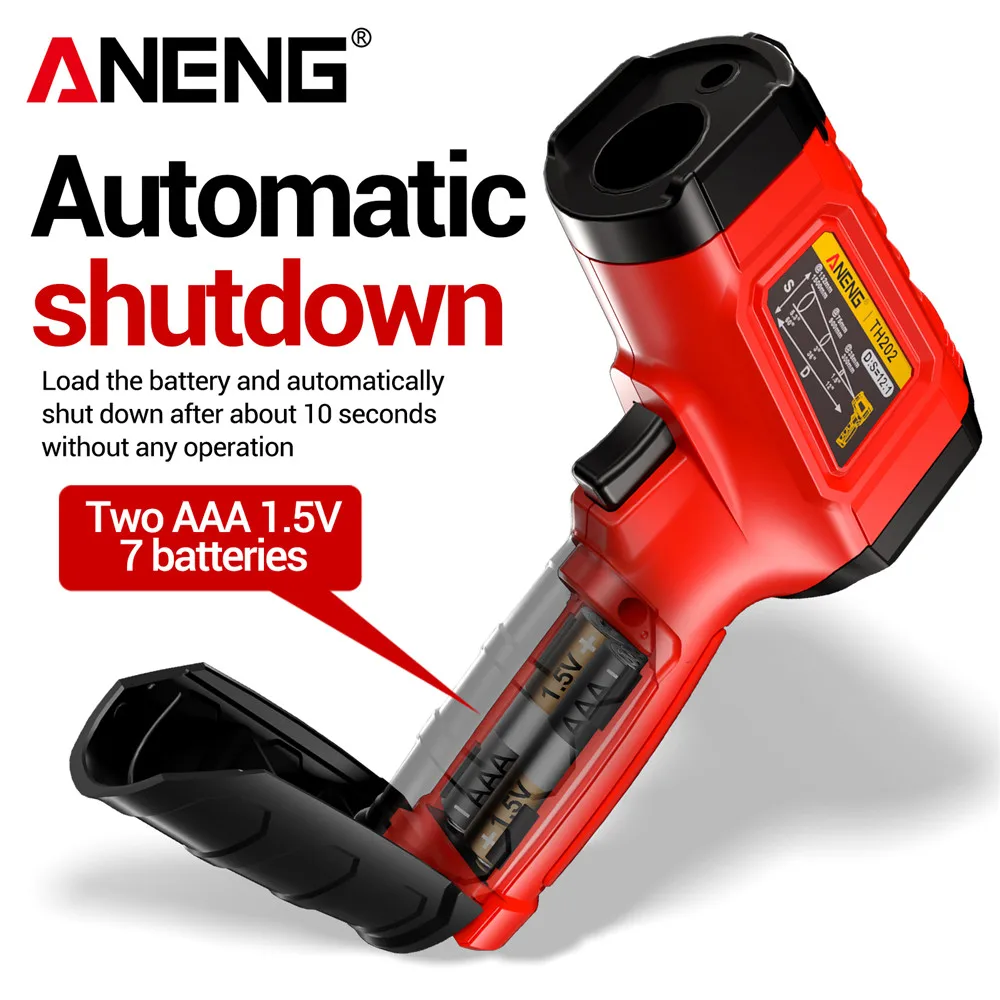

Auto power off |
√ |
Maximum value |
√ |
|
Low power prompt |
√ |
Weight |
105g |
|
Data retention |
√ |
Material |
ABS |

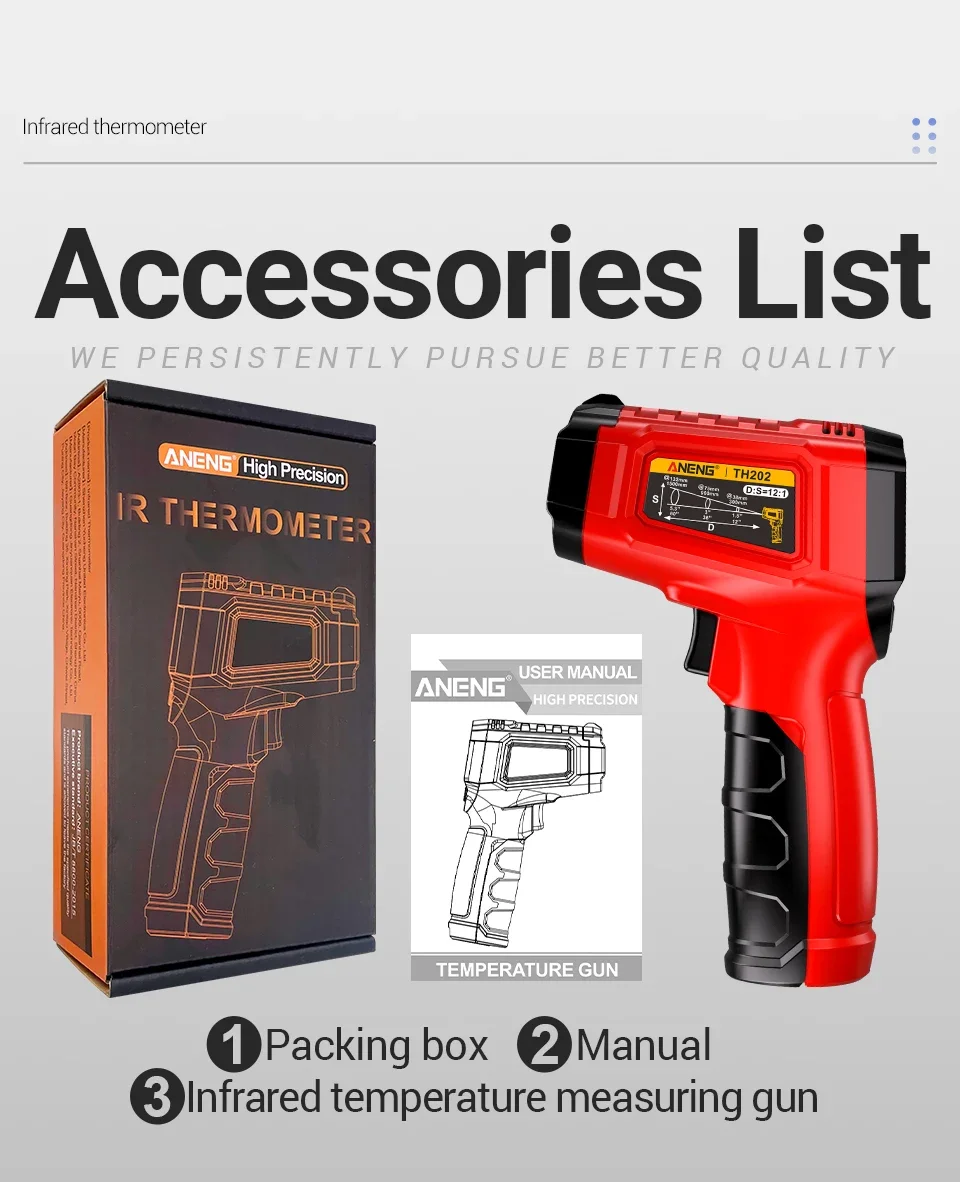

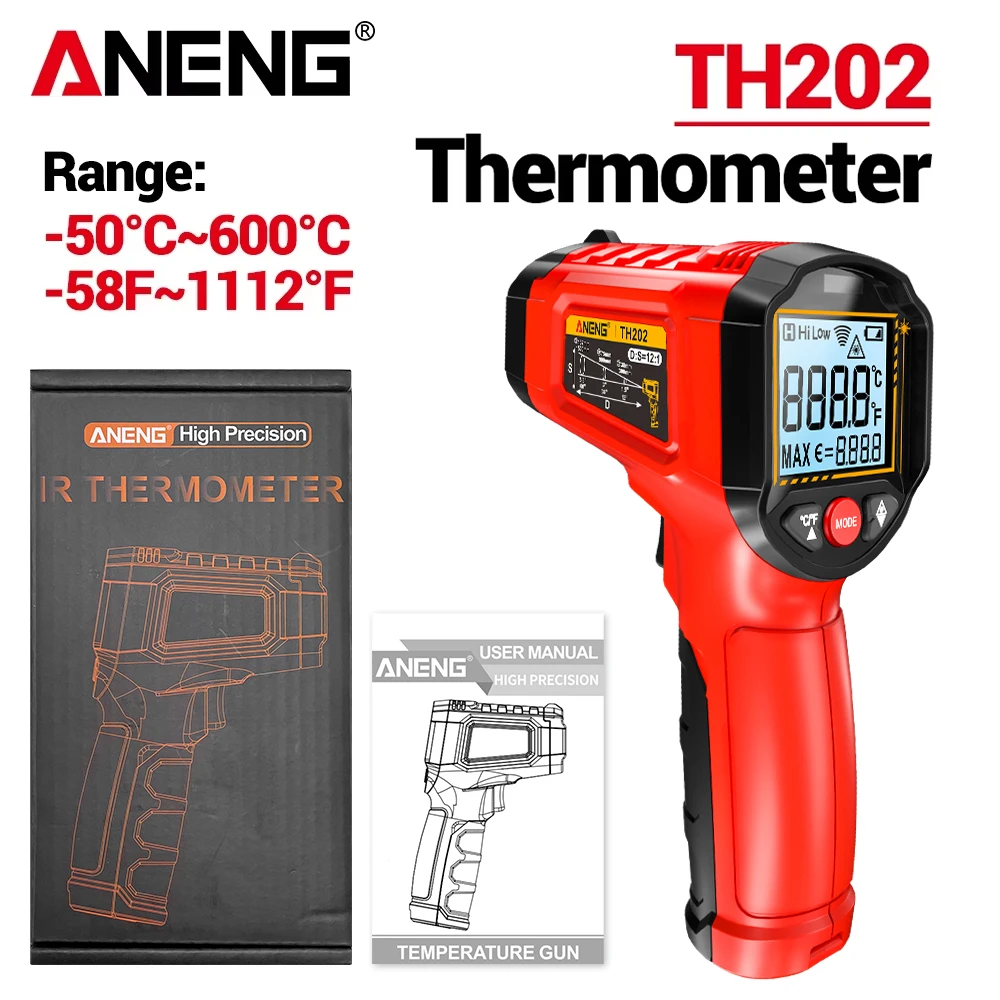

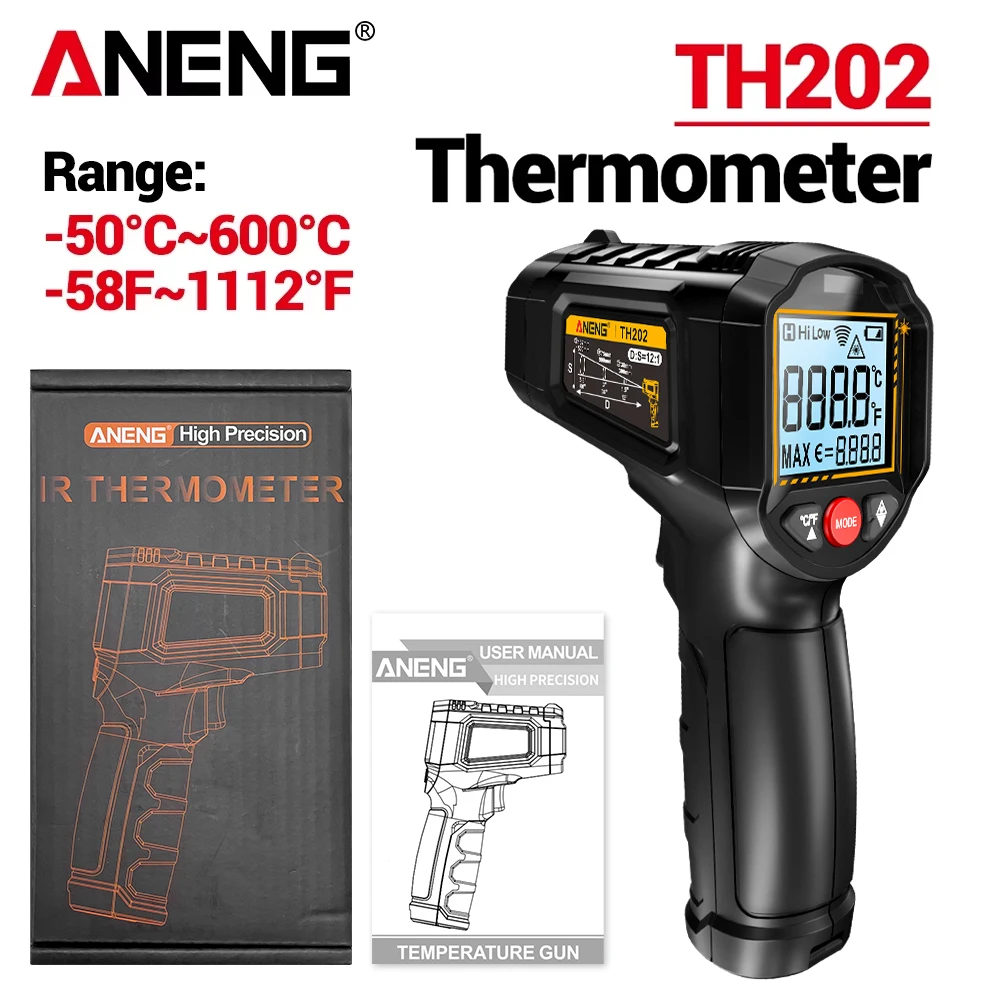

1 * TH202 Infrared Thermometer
1 * Packaing box
1 * Manual
Safety Notice
1. Warning:
To avoid potential harm to users, please read and follow the instructions below
Please do not aim the laser at the eyes or indirectly aim it at the eyes through reflective surfaces when using this device;
The measuring instrument cannot measure through transparent surfaces such as glass/plastic, otherwise the value measured by this instrument will be the surface temperature of the transparent object;
Steam/ash layer/smoke or other particles can form obstacles to the lens of the instrument, affecting the accuracy of the measurement.
2. Attention:
To avoid damaging the thermometer or the device being tested, please protect them from the following effects.
EMF fields generated by arc welding machines and induction heaters;
Thermal shock (due to significant or sudden temperature changes caused by the environment, wait for 30 minutes for the thermometer to reach a stable state before use).
Do not place the thermometer near or on high-temperature objects.
