SPECIFICATIONS
Brand Name: kingnovyPC
Case Material: Brushed Aluminum Alloy
Certification: CE,FCC,RoHS
Graphics Card Type: Integrated Card
Hard Drive Capacity: 1TB
High-concerned chemical: None
Memory Capacity: ≥ 4GB
Model Number: X2F
Netwok Ethernet: 4*Intel i226-V 2.5G LANs
Origin: Mainland China
Processor Brand: Intel
Processor Main Frequency: Depends on CPU
Processor Model: i5-8250U/N150/N6005/4417U
Type: Mini Desktop,Mini PC
Use: Multimedia
|

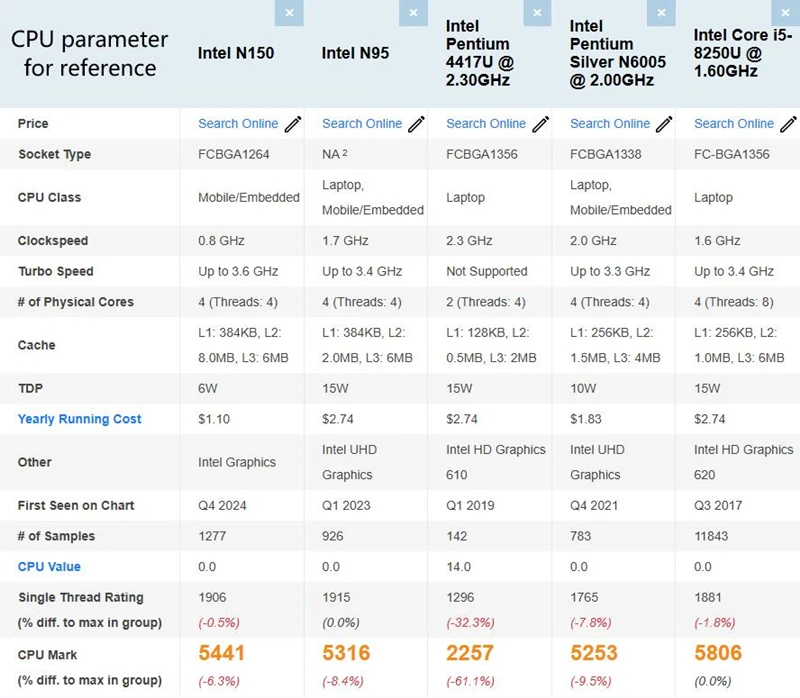

Processors |
Cores & Threads |
Max Turbo Frequency |
TDP |
|
Intel N100 |
4 cores, 4 threads |
3.40 GHz |
6W |
|
Intel Pentium N6005 |
4 cores, 4 threads |
3.30 GHz |
10W |
Product Highlight

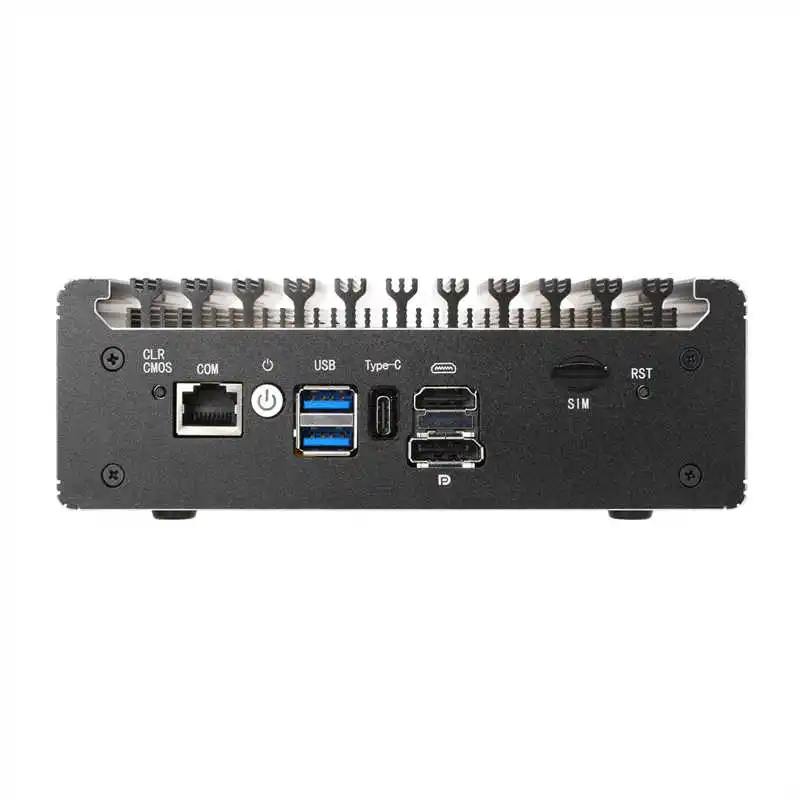

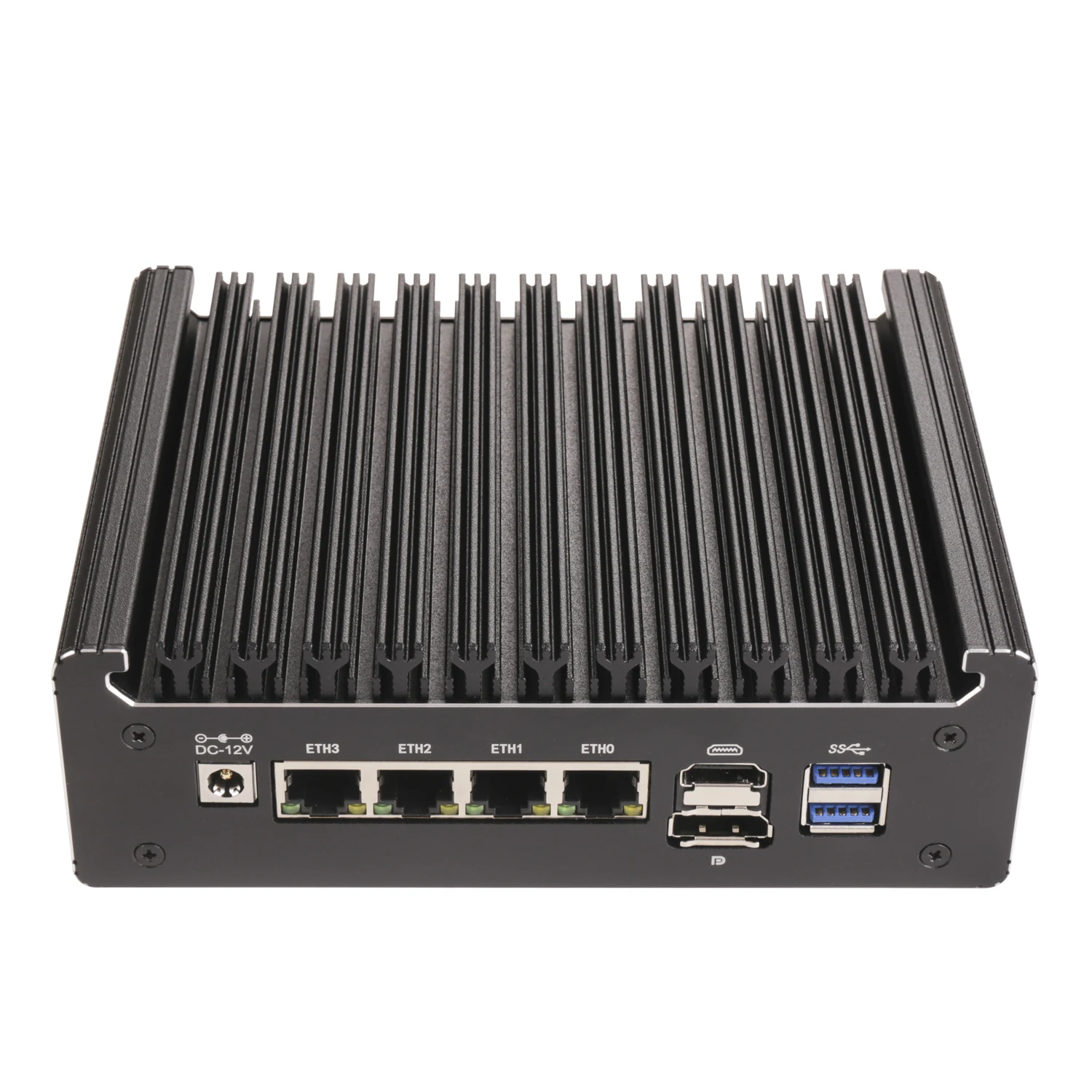

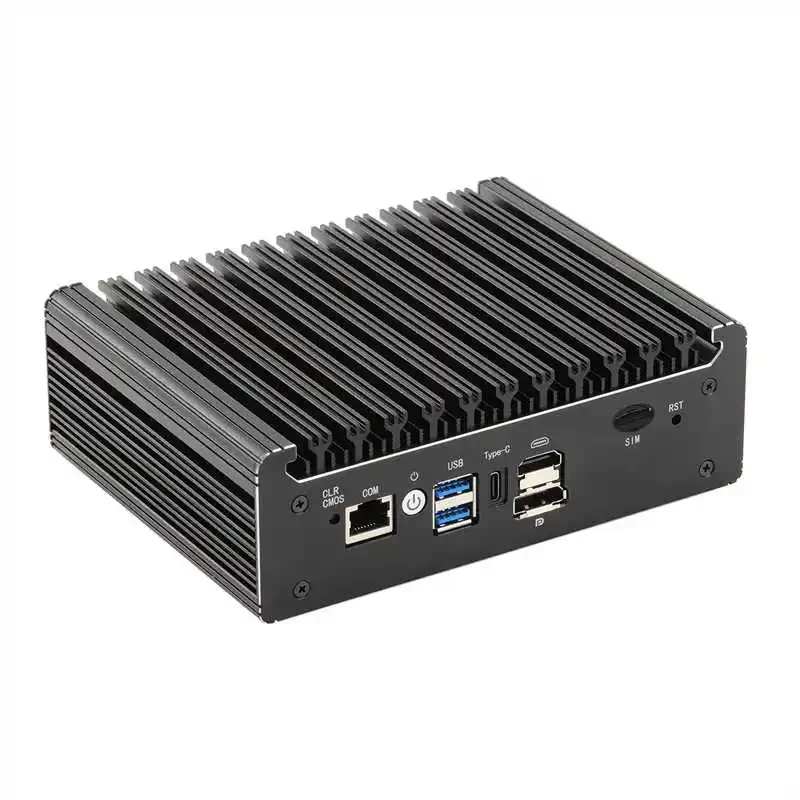

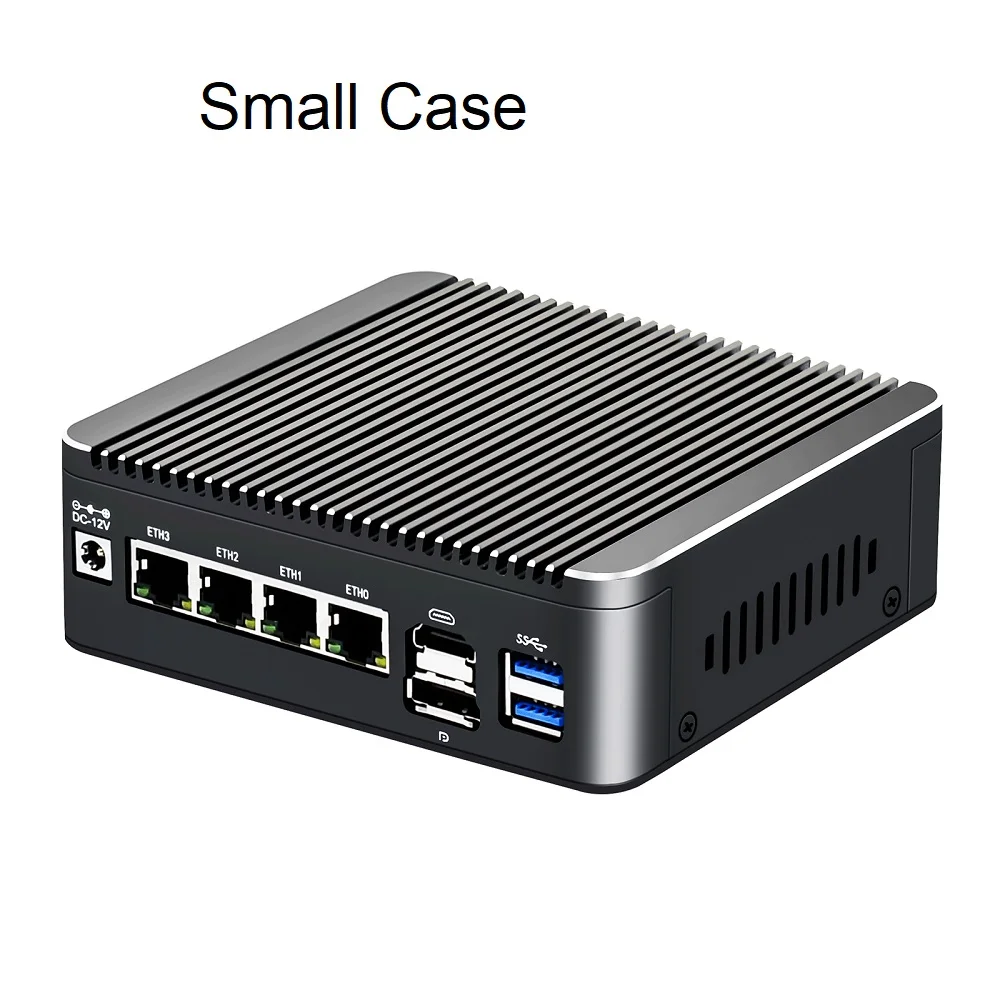

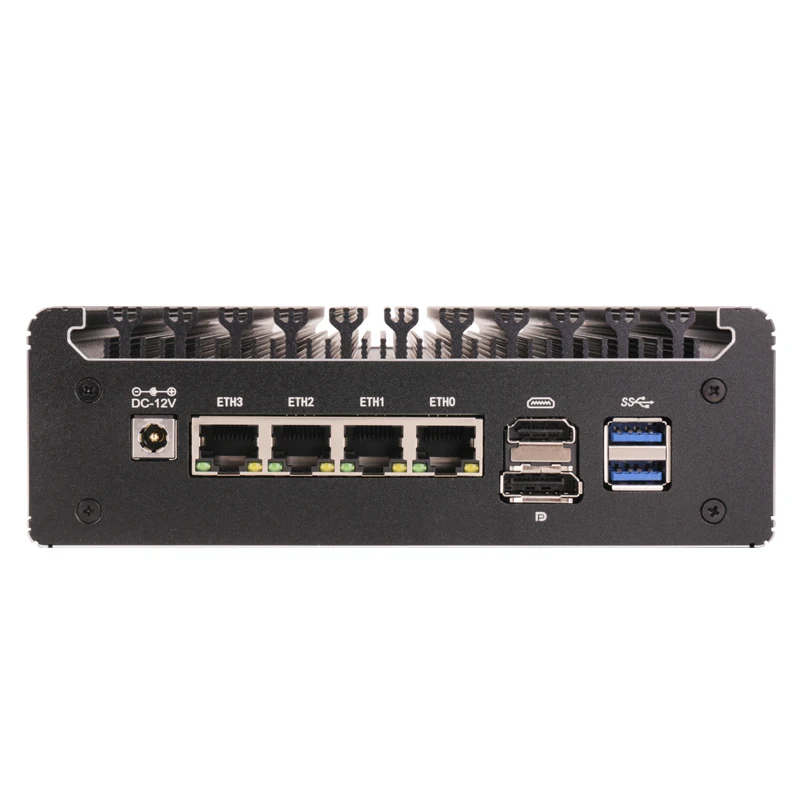

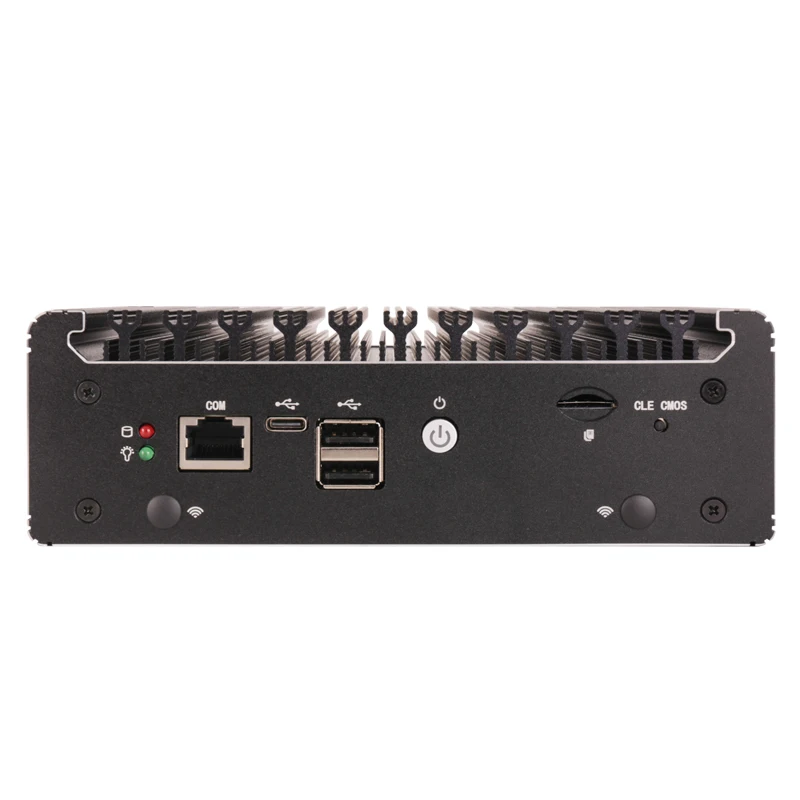

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.2, 2xUSB2.0, 1xType-C(data only), 1xCOM RJ45.
-Intel N150 i5-8250U 4417U: 1xDDR4 SODIMM non-ecc ram slot, support max 32GB 3200MHz.
Intel Pentium N6005: 2xDDR4 SODIMM non-ecc ram slots, support max 64GB 2666/2933MHz.
-Support two storage: 1xM.2 2280 NVMe/PCIe3.0x1 SSD+1×2.5''SATA3.0 7mm SSD/HDD.
-Support 1xHDMI2.0 and 1xDP1.4 dual 4K@60Hz video display.
-1xMini PCIE slot+1xSIM slot, supports WiFi or 4G LTE signal.(optional to buy)
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

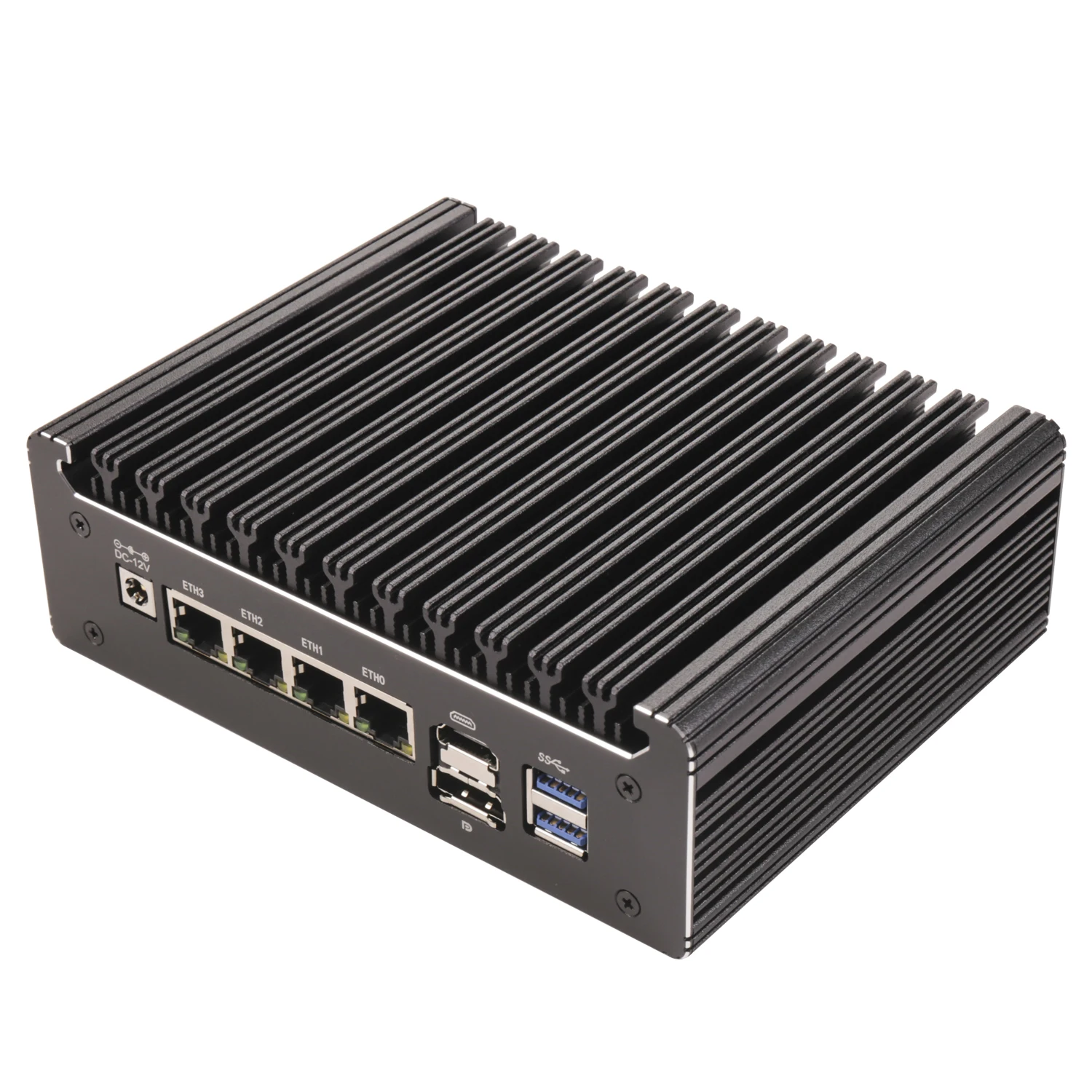

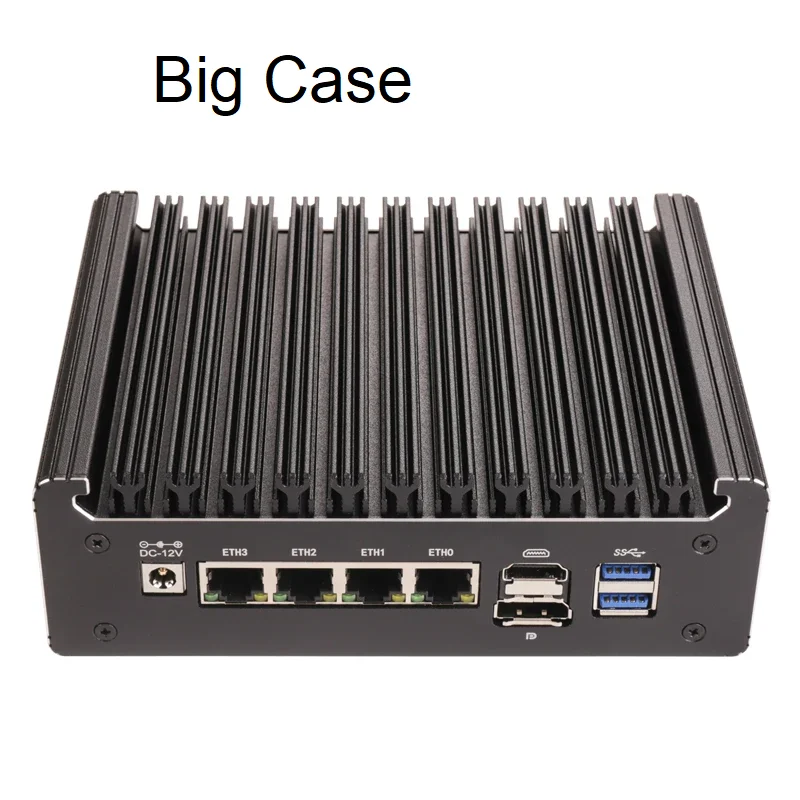

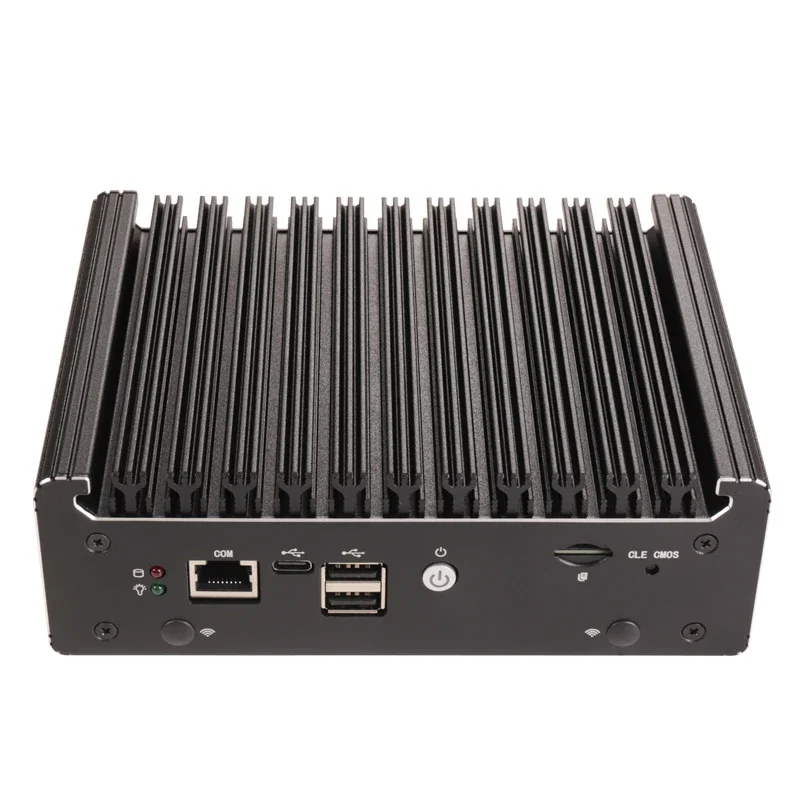

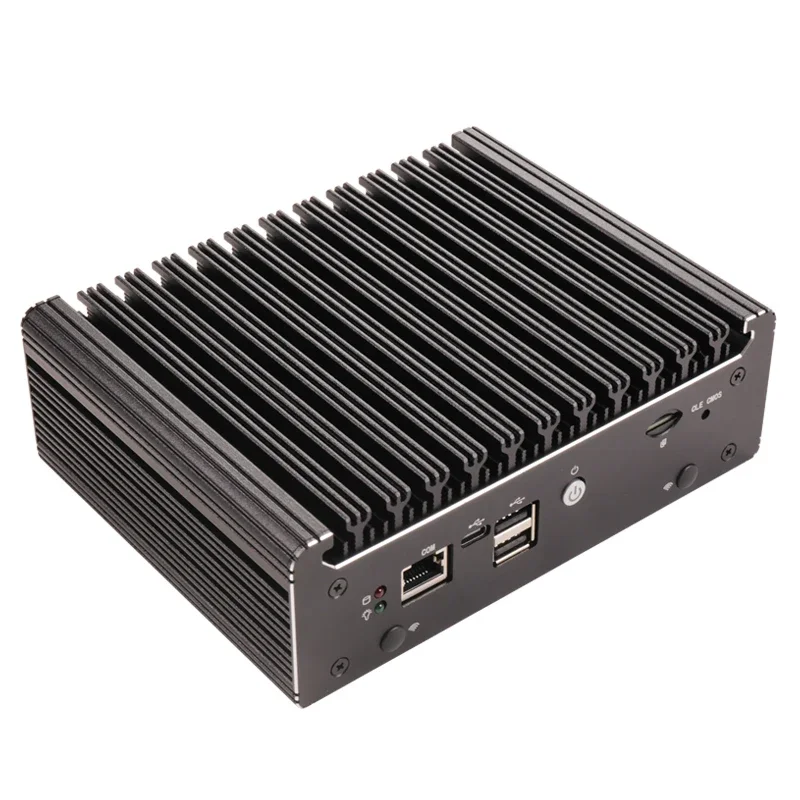

-Solid aluminum fanless system larger case 163*126*55mm with Y-shape fins has better cooling efficiency with a temperature 15-20℃ lower and performance 25-30% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7×24 hours. A 8010 fan was included in package for DIY if you still worry about heat.
Package List
1xMini PC
1xPower Adapter
1xPower Cable
1xSATA Cable
1xScrews Bag
1×8010 fan(gift)
Notice
Suggest to install newest version of following systems with supportable kernel for intel i226-V: pfSense-CE 2.7, OPNsense 23.x, pfSense Plus, OpenWrt, ESXi, Proxmox, CentOS etc.
Intel N150 I5-8250U 4417U model:

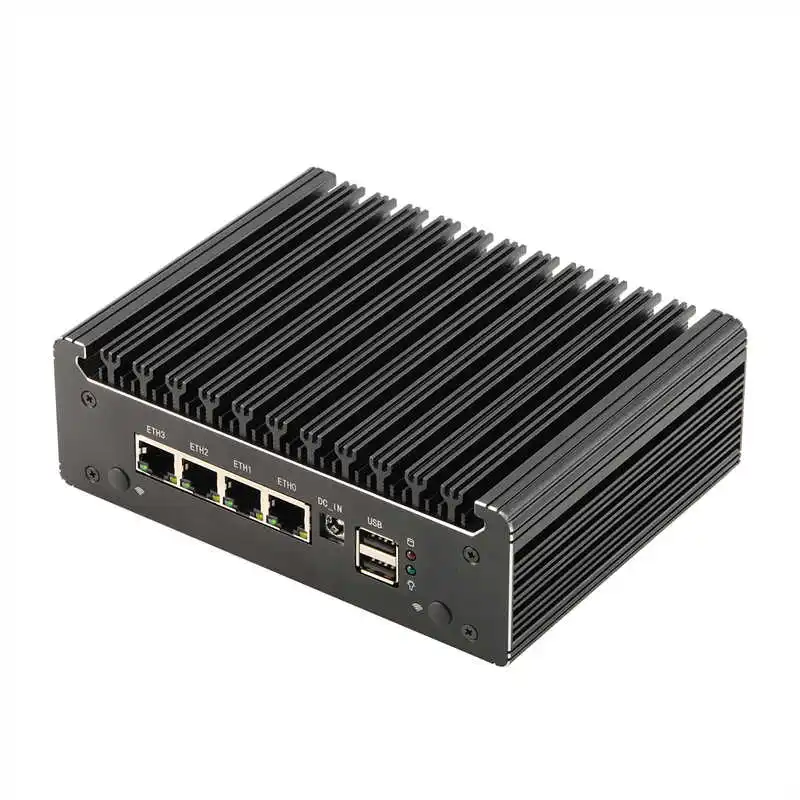

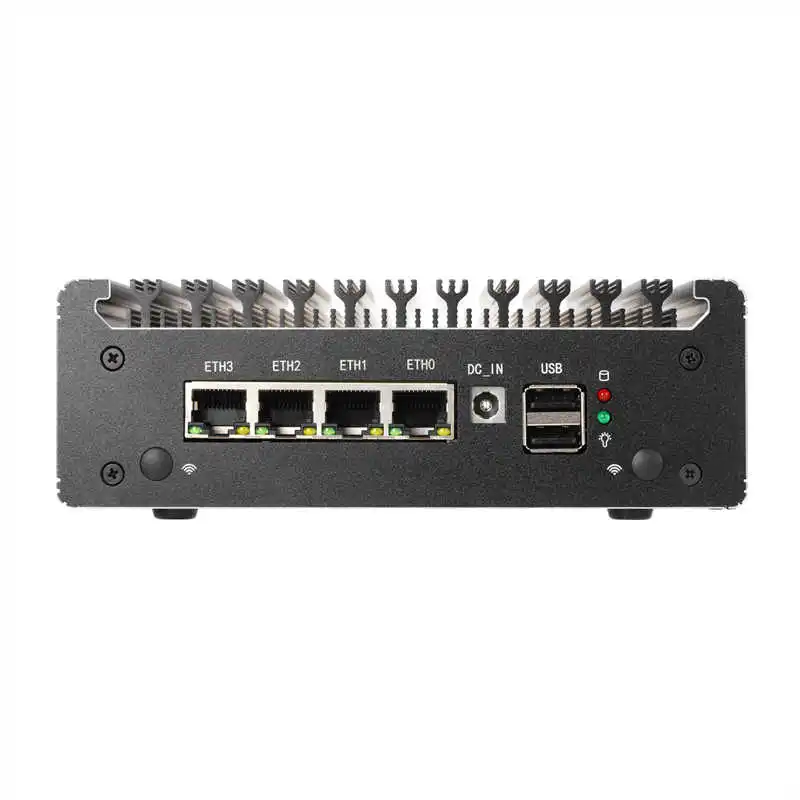

Intel Pentium N6005 model:
